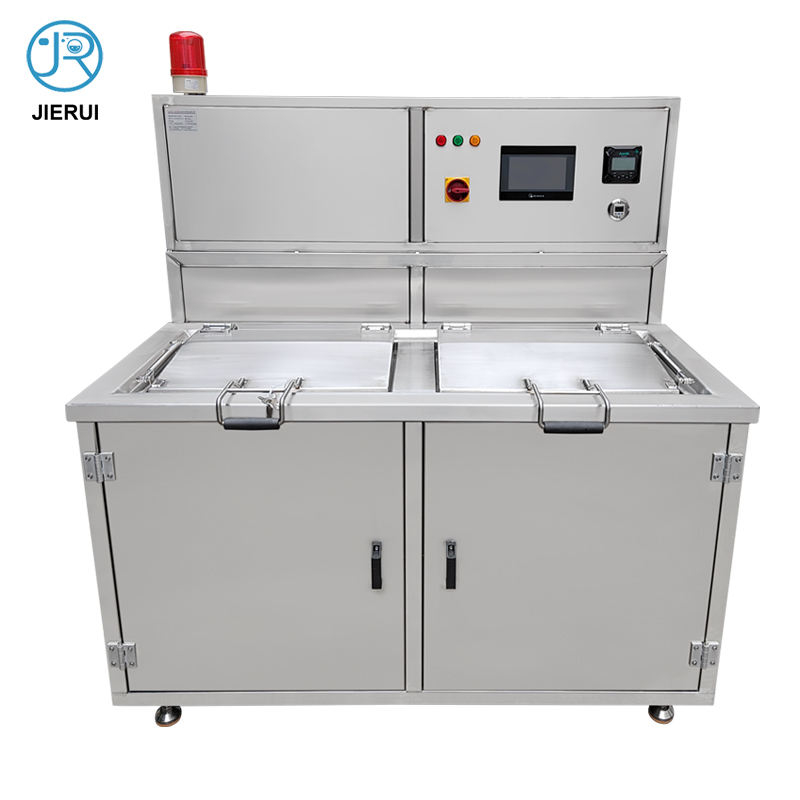

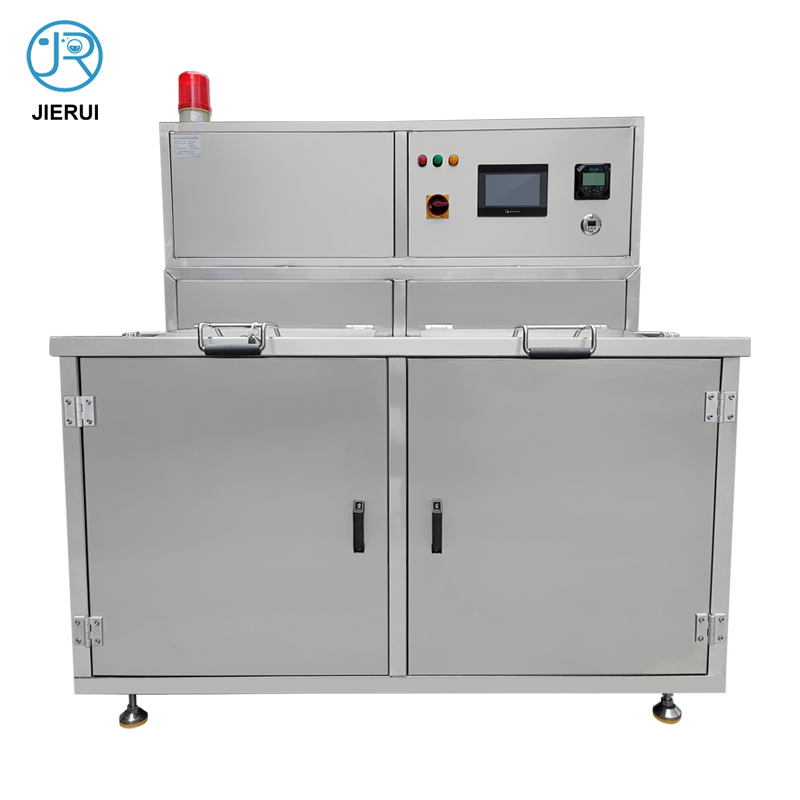

Full automatic Centrifugal plating cleaner + vacuum hot air circulation drying semiconductor ultrasonic cleaning machine

Availability:
Quantity:
Inquire Add to Basket

Our Advantages
Main Products
Products Description
Model：
JR-1068H Double Tank Industiral Ultrasonic Cleaners
First Tank：Centrifugal plating cleaning
Second Tank：vacuum hot air circulation drying
Tank Capacity:
54L
Tank Capacity:
54L
Tank Size：(L*W*H)
450*300*400mm
Tank Size：L*W*H(mm)
450*300*400mm
Ultrasonic Frequency
28KHZ&40KHz
Drying Way
vacuum hot air circulation drying
Ultrasonic power
1500W
Drying Power
3000W
Heating Power
3000W
Drying Time
0-99 Hours Adjustable
Time Control
0-99min Adjustable & Always On
Drying Temperature
20-120℃ Adjustable
Temperature Control(℃)
20-95℃ Adjustable
Finish Alarm
Automatic alarm after drying
Feature

First Tank：Centrifugal plating cleaning Second Tank：vacuum hot air circulation drying

Centrifugal plating cleaning，Specially for cleaning in the semiconductor industry, lowering the PH value，vacuum hot air circulation drying，No water vapor in the air, fast drying without trace.

cleaning tank with water supply and drainage system

Use electric water supply and electric drainage, add manual water supply, add manual drainage, add a flow meter at the water supply outlet; water supply to the inner tank at a fixed height automatically stops.Installation of high-low liquid level protection (High level float flow meter), The tank body is designed with an overflow port
