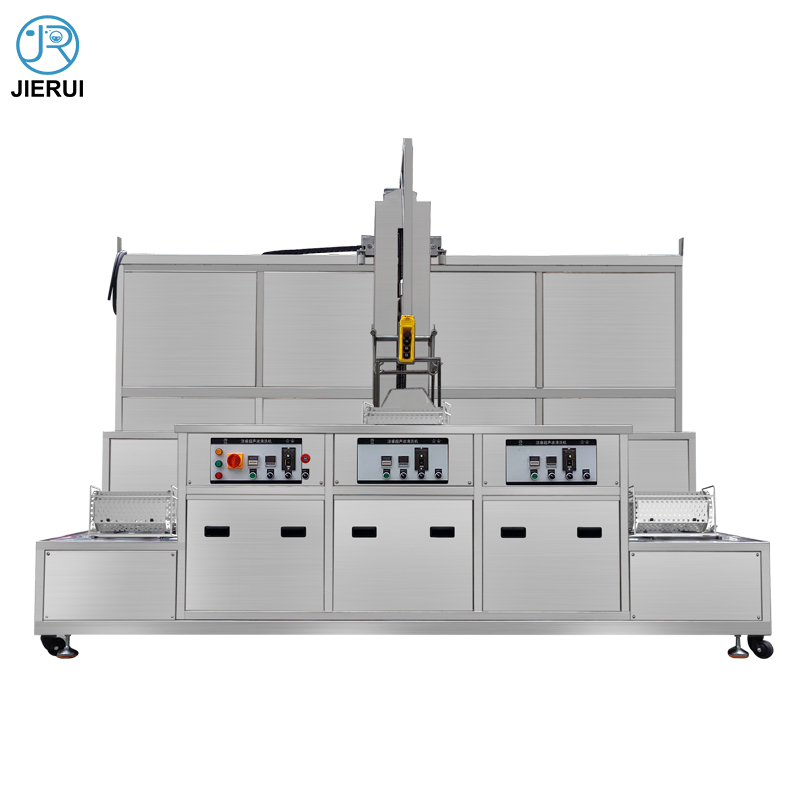

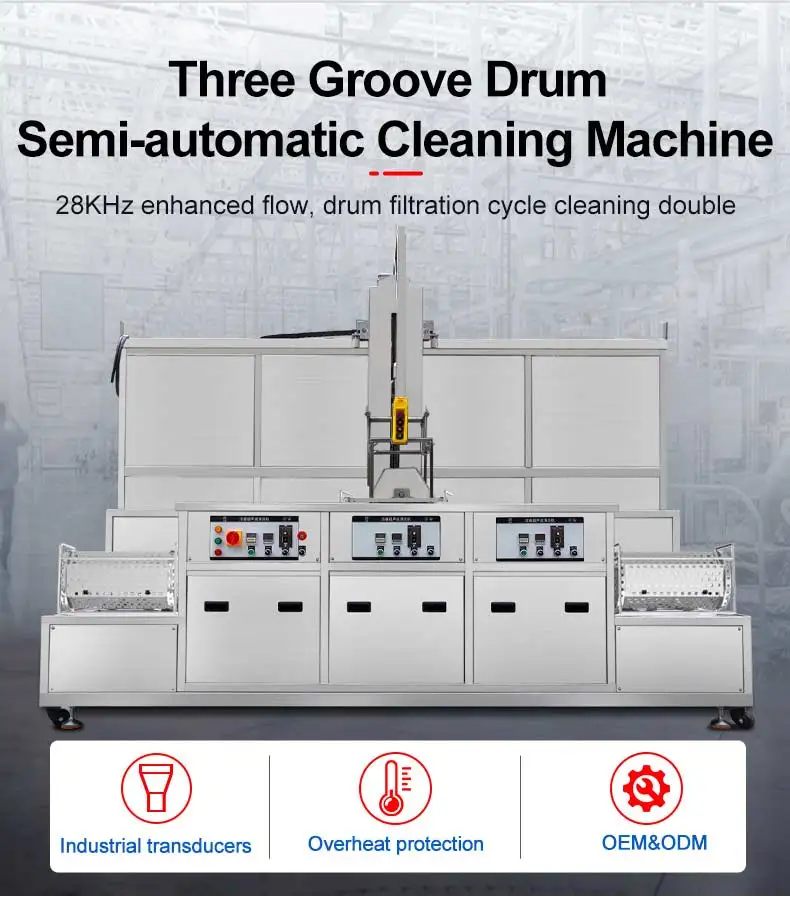

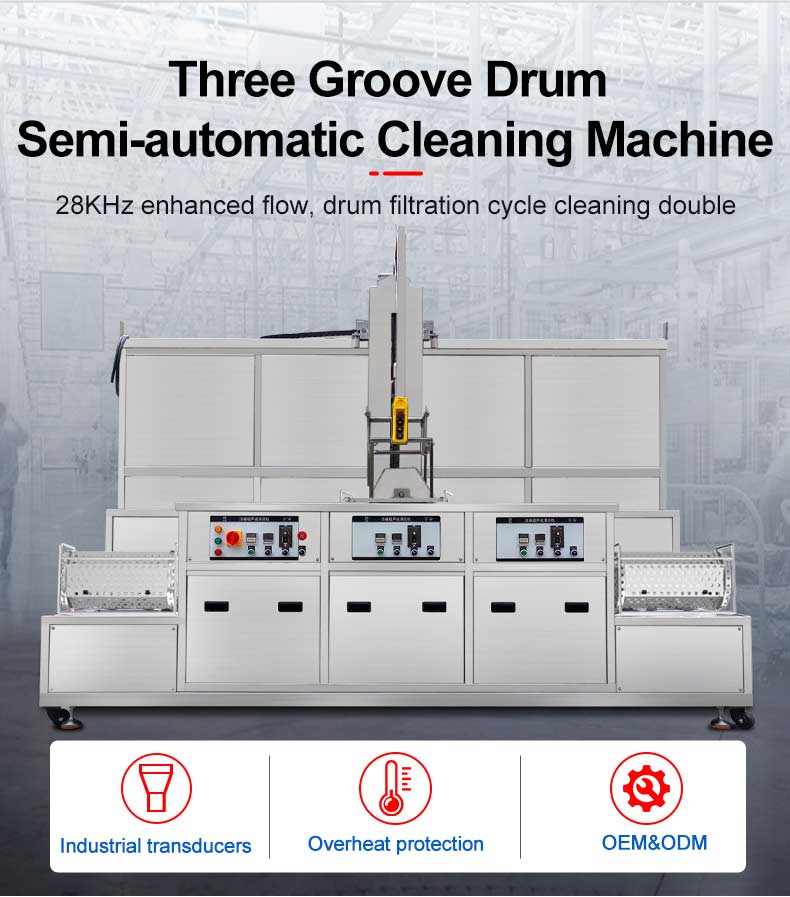

Three tank 88l spring roll filter cycle auto lifting hardware parts cleaning washing drum industrial ultrasonic cleaner machine

Availability:
Quantity:
  • JR-3030GH

  • JieRui

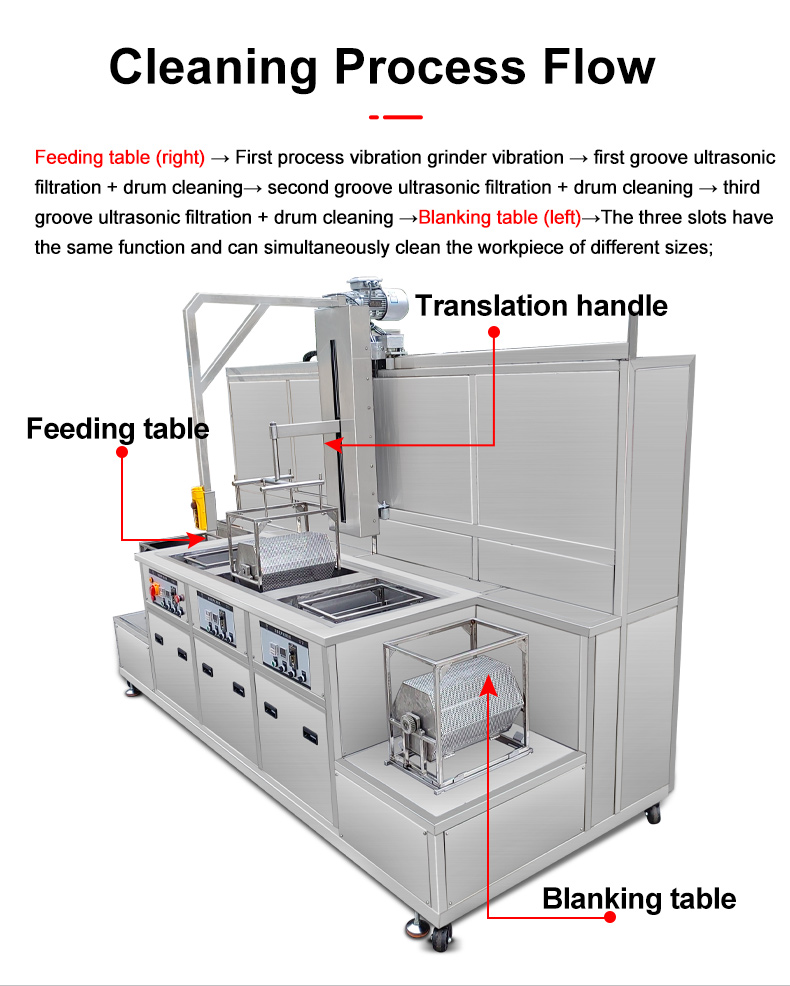

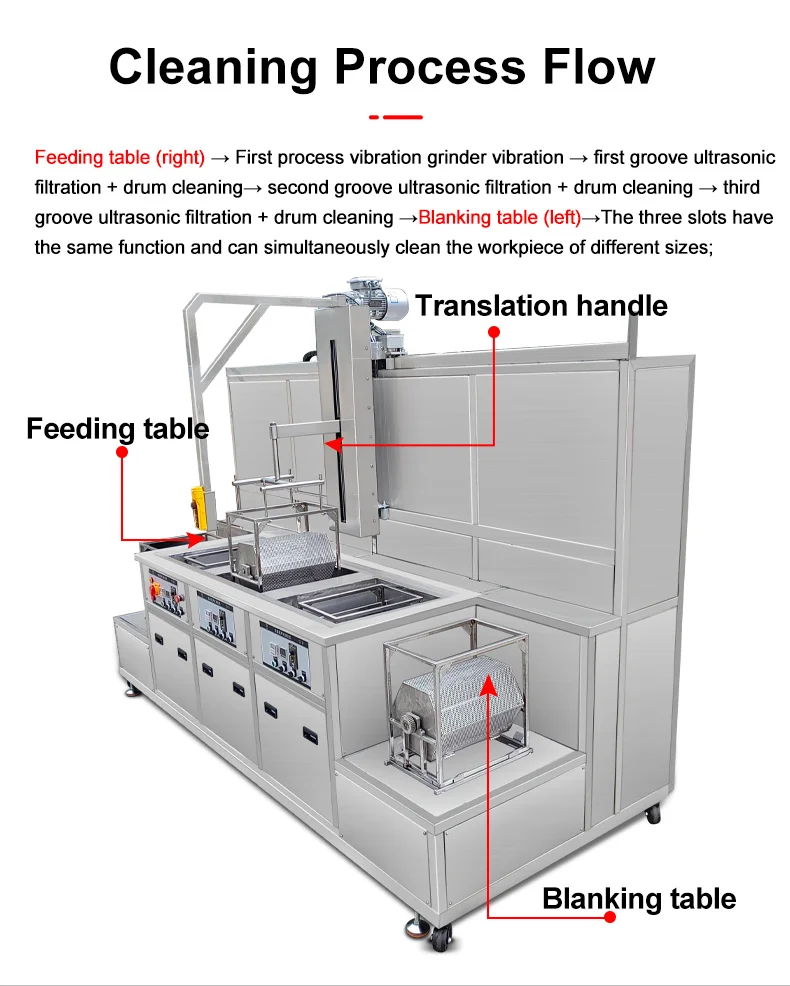

Three Tank Drum ultrasonic filter cycle cleaning


1. Tank size: 550*400*400mm;
2.  Inner tank material:SUS304 T=2.5mm;
3.  Drum size:Length L400mm*¢300mm=30L;
4.  Drum mesh aperture = 5.5mm, according to different product specifications to make cleaning drums;

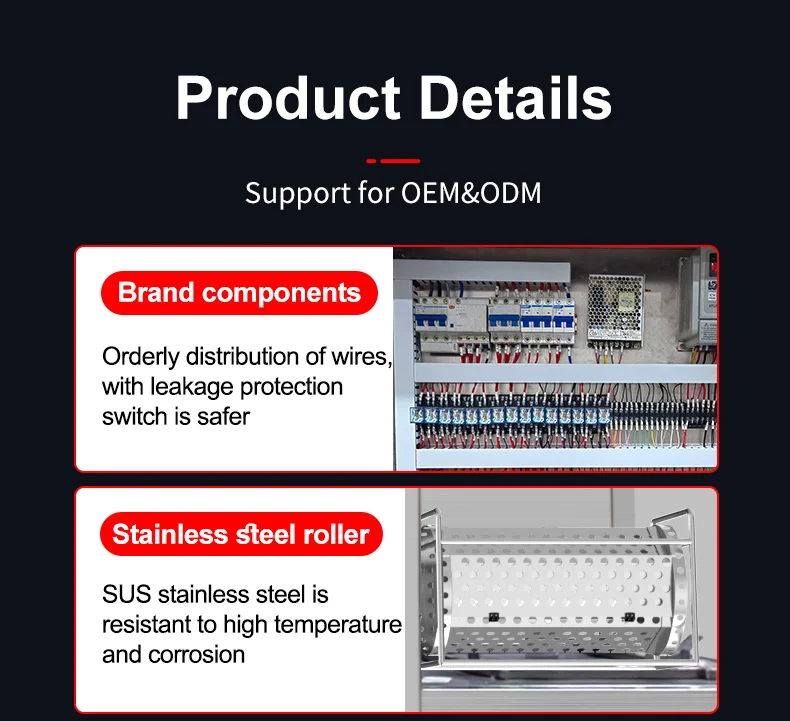

5.  Section0;}Drum material:SUS304 T=1mm;

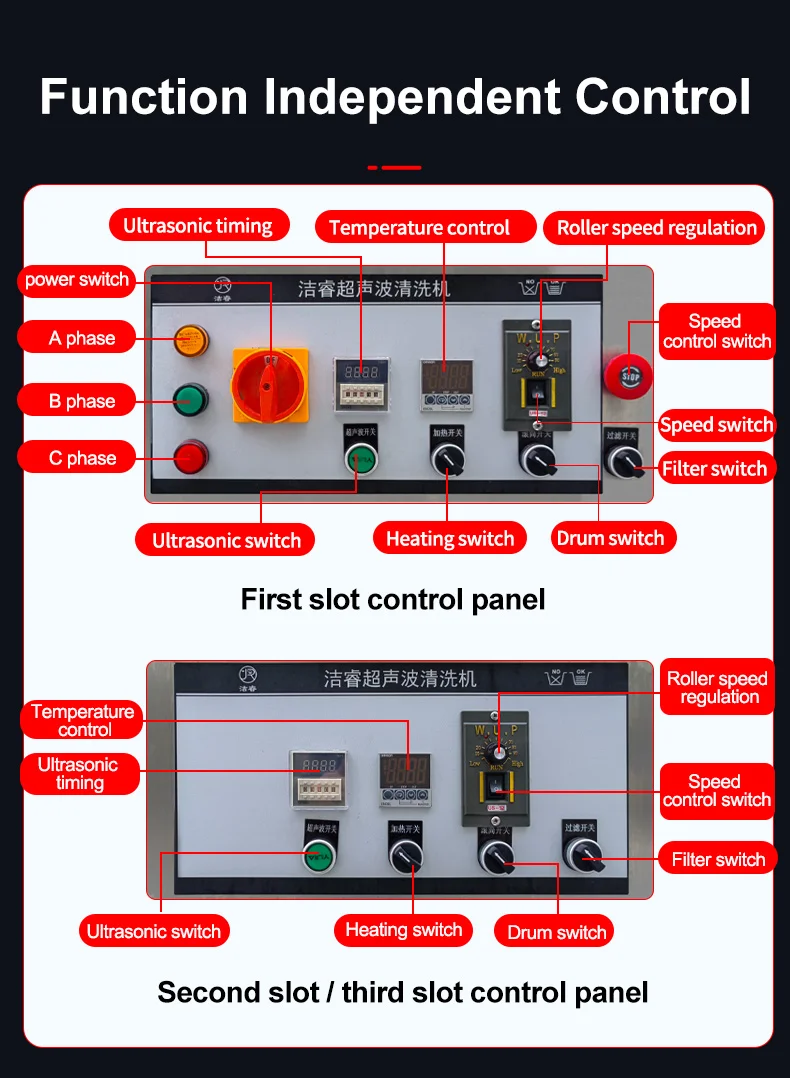

6. Drum running time control: 0-99 minutes can be set and adjusted in seconds, and can be normally opened. Set the time arrival indicator light alarm prompt;

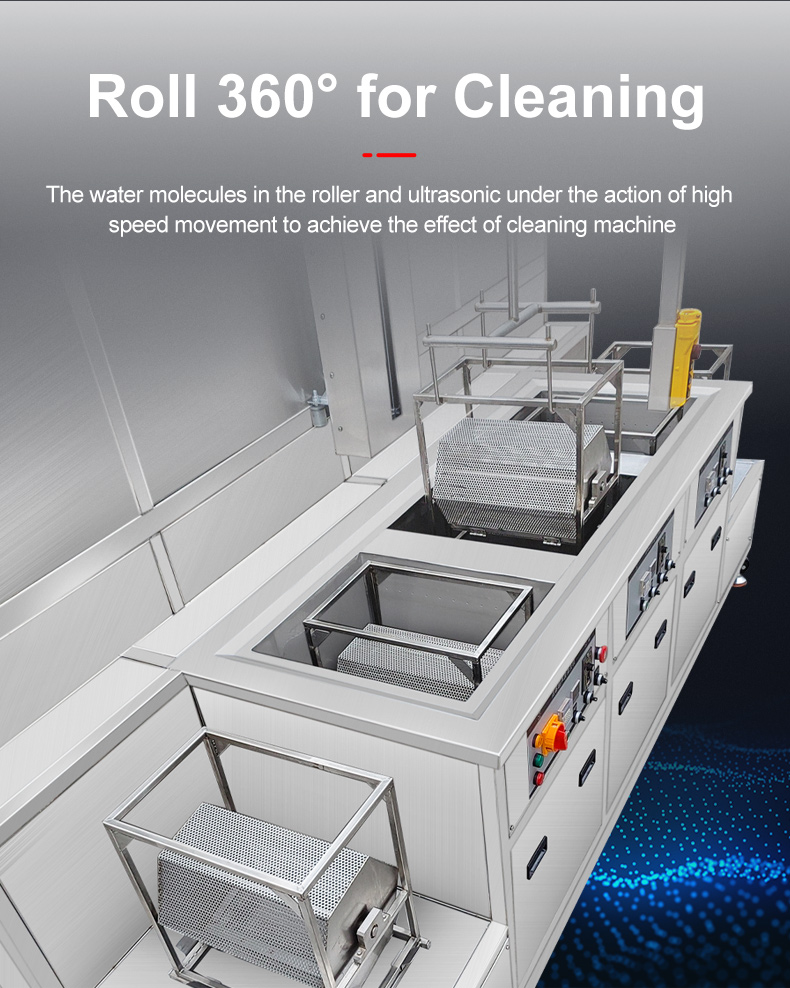

7. The drum is equipped with a flip-type mesh tank cover to facilitate loading and unloading of materials;
8. Drum speed: 0-30 rpm adjustable;
9. Heating: quick release stainless steel heating tube 3KW;

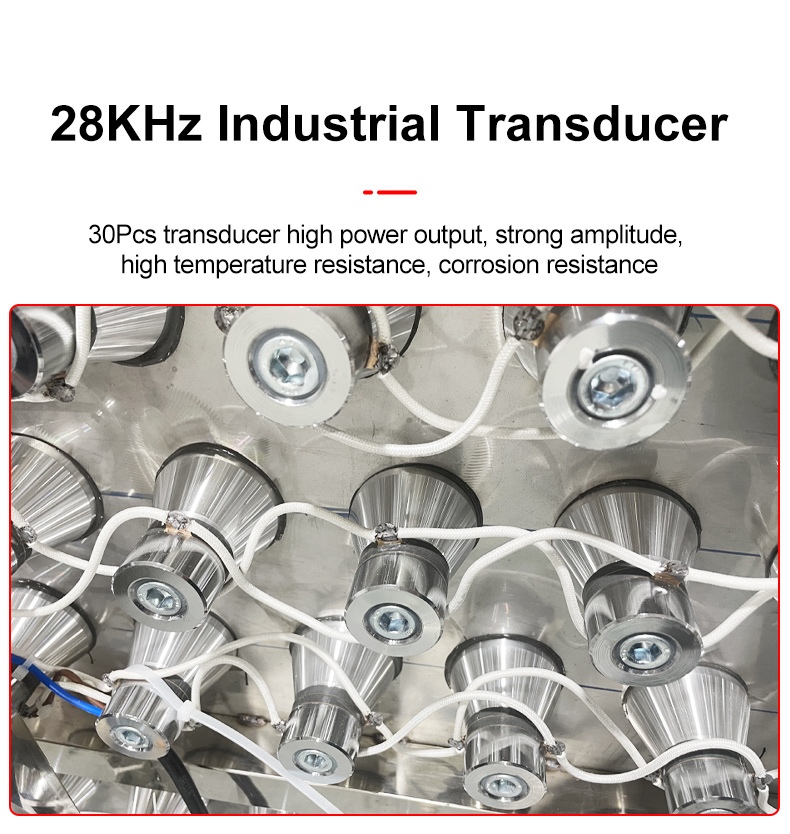

10. The ultrasonic generator is 2C to control its excitation mode, which can automatically balance the current;
11. The ultrasonic generator is equipped with overload protection, and the power element temperature is too high to automatically protect;
12. Ultrasonic generator with FM modulation mode, even cleaning without dead ends;

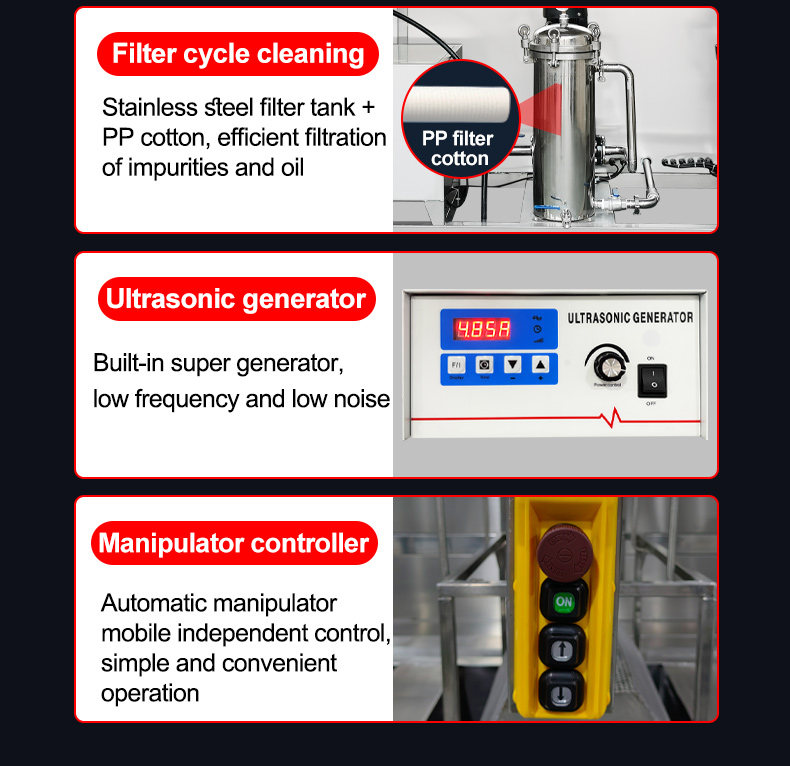

13. Filtration system: 0.5HP stainless steel water pump + 10〞304L stainless steel filter + stainless steel pressure gauge;
14. Protection device: Install stainless steel water level protector to protect water pump and ultrasonic;
15. Overflow water: overflow from four sides to the oil-water separator and return to the main
tank after being filtered.




半自动详情_01

半自动详情-02

半自动详情_03半自动详情_04半自动详情_05半自动详情_06半自动详情_07半自动详情_08半自动详情_09半自动详情_10半自动详情_11半自动详情_12
